Low High Pressure Boiler Economizer with Max 60t/h Steam Production and Natural Circulation
| Miejsce pochodzenia | ZHANGJIAGANG, CHINY |
|---|---|
| Nazwa handlowa | HD Boiler |
| Orzecznictwo | ISO9001,ASME,SGS,EN,TUV |
| Numer modelu | Ekonomizer typu gołego |
| Minimalne zamówienie | 10 ton |
| Cena | $2,200-2,500 / ton |
Skontaktuj się ze mną o darmowe próbki i kupony.
WhatsApp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.
xSzczegóły Produktu
| Typ | Naturalne krążenie | Struktura | Rurka ognia i rura wodna |
|---|---|---|---|
| Ciśnienie | Niskie/wysokie ciśnienie | Produkcja pary | Maks. 60 t/h |
| Styl | Pionowy | Paliwo | Opalane węglem |
| Wyjście | Gorąca woda / para | Obróbka powierzchniowa | Namalowany |
| Naga rura OD | 25-1650 mm | Naga grubość rury | 2-40 mm |
| Grubość płetwy | 0,6-3,0 mm | Wysokość płetw | 5-30 mm |
| Fin Tube | 5-30 mm | Długość rurki płetwowej | ≤12000 mm |
| Tworzywo | Stal węglowa, stop, stal austenityczna | ||
| Podkreślić | Max 60t/h Steam Production Boiler Economizer,Low High Pressure Boiler Economizer,Natural Circulation Boiler Economizer |
||
opis produktu

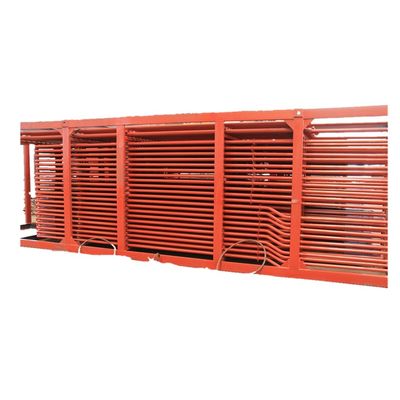

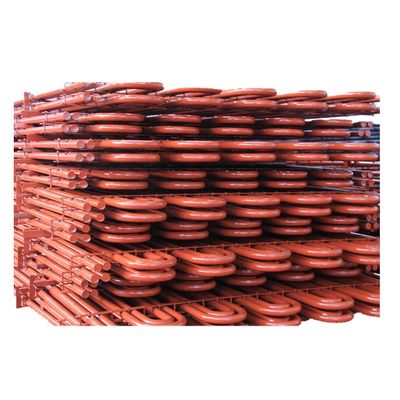

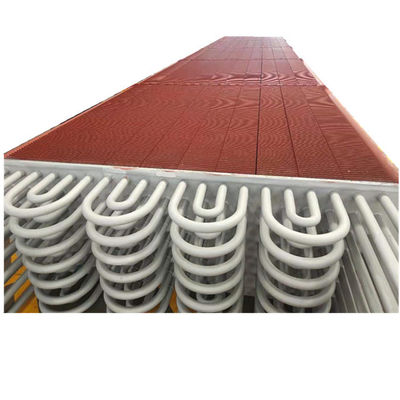

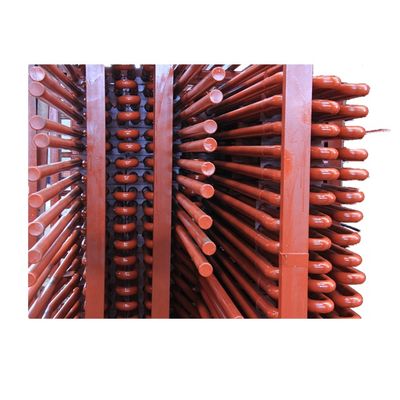

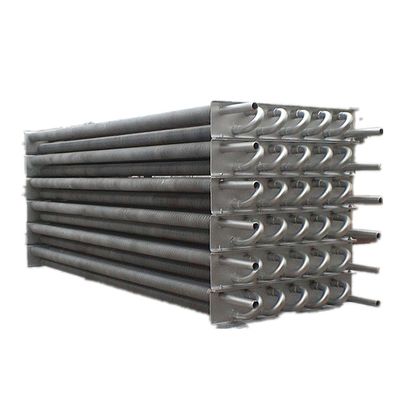

Low / High Pressure Flue Gas Boiler Economizer Heat Exchanger Devices With Finned Tubes
Boiler Economizer
Introduction
Economisers perform a key function in providing high overall boiler thermal efficiency by recovering low-level energy from flue gas before it is exhausted to the atmosphere. They recover this energy by heating the boiler feedwater. Economisers are tubular heat transfer surfaces used to preheat boiler feed water before it enters the steam drum or furnace surfaces, reducing operating costs by recovering extra energy from flue gas.
Procedure
Economisers reduce the potential for thermal shock and strong water temperature fluctuations as feed water enters the drum or waterwalls. They also help meet stringent environmental regulations limiting nitrogen oxides and sulfur dioxide emissions. The gas-side heat transfer coefficient is much lower than the water-side coefficient, so outer tube surfaces may be finned to increase heat transfer area. Economiser design aims to achieve necessary heat transfer at minimum cost, with maximum allowable flue gas velocity being a key criterion.
Specifications
| Name (unit) | Specification (mm) |
|---|---|
| Bare pipe (OD) | 25-1650 |
| Bare pipe (Thickness) | 2-40 |
| Fin (Thickness) | 0.6-3.0 |
| Fin (Height) | 5-30 |
| Fin tube thread pitch | 5-30 |
| Fin tube length | ≤12000 |
Material: Carbon Steel, Alloy, Austenitic Steel (Nickel and Chromium or Manganese)
Quality Control
- Impact test and Strength calculation report with applied materials information
- 100% NDT (non-destructive inspection) report of steel plate, tube and electrode
- X-ray, γ-ray and liquid penetrant test inspection report (welding seam) to ensure boiler quality
- Hydraulic test report to ensure standard working pressure and safety
